SP Series – Electric Submersible Pump
Application area
Industrial Aquaculture
Water Utility
*Not suitable for homeuse
Showing 65–76 of 76 results
-
-

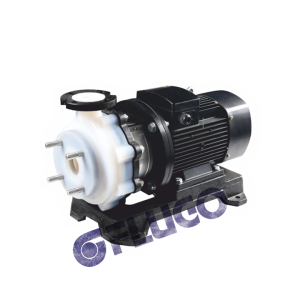

SZF Series – Plastic free – Fluorin Plastic Pump (direct connection)
Structure Feature
SZF pump has one impeller, axial suction and radial discharge
Simple structure, shaft is directly connected with impeller
Easy for pipe work, inlet and outlet are connected by standard flanges
Wet part are made of F26,F64, accessories are made of cast iron (HT200) -

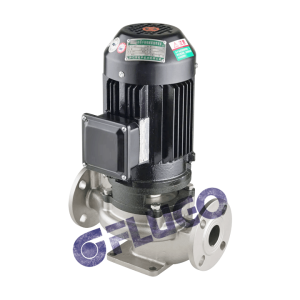

TDF Series – Stainless steel corrosion resistant pipeline pump
Suitable for conveying of 304 or 316 stainless steel does not produce significant corrosion effect of liquid medium temperature 120°C environment temperature 40°C or higher level or higher suction, level
-

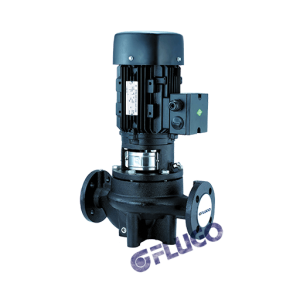

TK Series – Single Stage Vertical In-line
Application
TK pumps are applicable for urban water supply, industrial water, cooling system, and cold & hot water for regional heat supply system:
Main circulation pump
Mixed circuit pump
Boiler mixed-flow pump
Gas-fired freezer pump
Filter pump
Constant pressure system pump
Urban hot water ciculation -

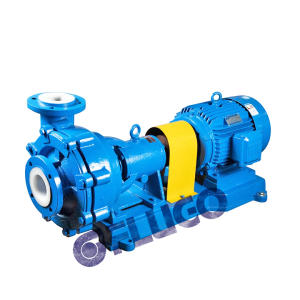

UHB-K Series – Chemical Slurry Pump
Structure and features : (1) Anti-corrosion and wear-resisting, multi-purpose pump, acid and alkali clear liquid slurry are applicable. (2) The pump body is steel lined with ultra-high molecular weight polyethylene structure, the lining layer is 8-20mm thick, the pump applies the patented technology of tortoise mesh lining, compared with other similar pumps, it has the advantages of good heat deformation can be chosen according to the medium condition, (4) Seal: K type power seal, G3, G4 type mechanical seal.
Applicable Media: Sulfuric acid up to 80% concentration, nitric acid up to 50% concentration, hydrochloric acid of various concentrations, liquid alkali, both clear liquids and slurries.
Major Technical Parameters: Operating temperature -20°C -90°C, inlet diameter 32mm-600mm, flow rate 5-6000m3/h, head within 70m.
Sulfuric acid and phosphate fertilizer industry: dilute acid, mother liquor, sewage, sweater, fluorosilicic acid containing silica gel, phosphoric acid slurry and other media transport.
Non-ferrous metal smelting industry: especially suitable for lead, zinc gold, silver, copper, manganese, cobalt, rare earth and other wet smelting of various fuel, pigment production, non-metallic mineral processing and other industries.
Chemical and other enterprise: various sulfuric acid, hydrochloric acid, alkaline, oil clear liquid or slurry posts, titanium dioxide, iron red powder production, various fuel, pigment production, non-metallic mineral processing and other industries.
Choir-alkali industry: hydrochloric acid, liquid alkali, electrolyte, etc.
Water treatment industry: pure water, high purity water, sewage (leather sewage, electroplating sewage, electronic sewage, paper sewage, textile sewage, food sewage, domestic sewage, pharmaceutical industry sewage, etc.)
Iron and steel enterprise: sulfuric acid and hydrochloric acid posts of picking systems, effluent with impurities.
Wet desulfurization circulation pump: can be applied to alkaline, acidic and corrosive positions at the same time.
The transport of corrosive liquid and coal slurry in the coal carbon industry and coal chemical industry: the pump for coal washing and section. -
WQ Series – Sewage Submersible Pump
Model definition:
Discharge á‚´ (mm) : 80
Sawega submersible pump : WQ
No blockage cutting type : W
Stainless steel corrosion resistant type : F
Rated capacity(m) : 65
Rated head(m) : 15
Power(Kw) : 5.5 -

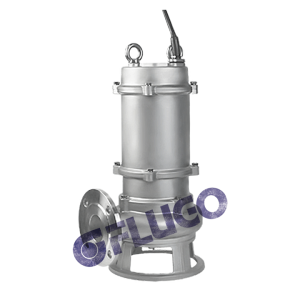

WQF Series – Sewage submersible pump
Model definition:
Discharge á‚´ (mm) : 80
Sawega submersible pump : WQ
No blockage cutting type : W
Stainless steel corrosion resistant type : F
Rated capacity(m) : 65
Rated head(m) : 15
Power(Kw) : 5.5 -
WQW Series – Sewage submersible pump
Penyaringan model: setelah optimalisasi kinerja, digunakan impeler saluran ganda (double-channel impeller) yang dilengkapi dengan dua atau tiga segel mekanis (mechanical seals) yang disusun secara wajar, guna memastikan pelumasan dan pendinginan segel mekanis, pengoperasian yang lancar tanpa penyumbatan, serta kapasitas aliran yang baik.
-

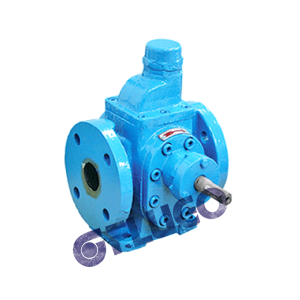

YCB Series – Gear Pump
Flowrate: max. 75m3/h
Head: max. 250m
Speed: max. 3600rpm
Temperature: -15 to + 120C
Pressure Rating: max. 25 bar
Shaft: Shaft seal
Direction: clockwise, when viewed from motor side -

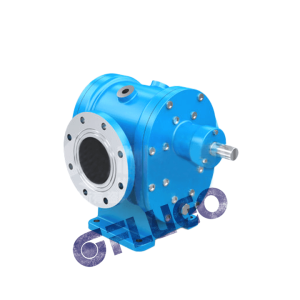

YCB-G Series – Gear Pump
This series of heat insulating gear pump belongs to external gear pump. The tooth from is composite formed by arc and sine curve. It could transfer many kinds of medium with steady output flow pressure. There are heat insulating jacket and inlet and outlet joint on the pump casing, so it could adopt the media, such as heat-conducting oil, steam, hot water and cold water to heat, keep warm and cooling the transferred medium and pump. When the speed should be reduced.
-

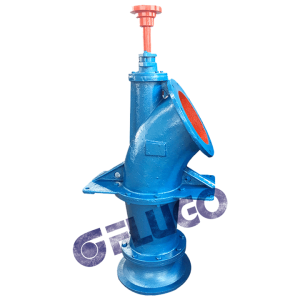

ZLDB Series – Axial-Flow Pump
Specification
Type : ZLB (ZLDB)
Standard : GB/T13008
Discharge Flange : DN 350 – DN 2000
Capacity : 55000 m³/h
Head : 10 m
Temperature of Pumped Liquid : +50 °C
Maximum Operating Pressure : 8 Bar
Frequency : Three-phase 50 Hz – 60 Hz
Pump Speed : 200 ~ 1800 RPM
Viscosity : 0~10 cps
Fluid : Clean Water
Impeller Type : Axial Flow
Casing & Covers : Cast Iron / Ductile Iron
Impeller : Ductile Iron / SS304 / SS329
Shaft : SS420 / SS304 / SS329
Seal : Packing Seal
Suction / Discharge Flange : GB/PN16 -

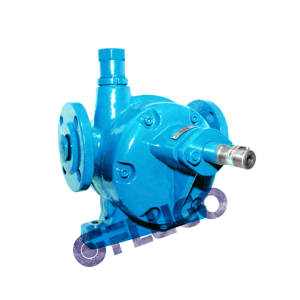

ZPG Series – Gear Pump
The approximate range of speeds for different liquids according to the size of the pump and working pressure is as follows :
Max. 1000rpm for current lubricating and cooling oils and other thin self-lubricating liquids up to a viscosity of approx. 40-10°E (330-87Cst) (in order of smallest to largest type of pump)
Max. 750rpm for denser self-lubricating liquids up to a viscosity of approx. 150-30°E (1100-220Cst) (same order).
Max. 500-200rpm for heavy oils, tar, molasses, glue, varnishes, syrups, and other liquids of higher viscosities (same order).
