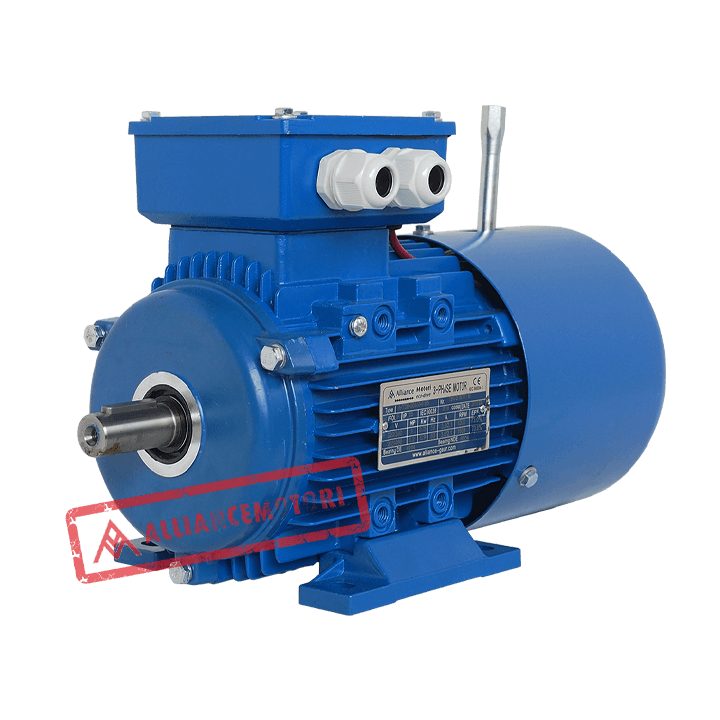

A-Y3B Series - Three Phase Asynchronous Motor
A-Y3B Series motor is derived from Y3H series motor with fast braking, simple structure and high stability.
Spesifikasi
Type : A-Y3B Series - Three Phase Brake Motor
Standard : JB/T6456-2010
Frame Size : H80-250 mm
Rated Power : 0.18 ~ 55kW*
Speed : 4P / 6P / 8P*
Efficiency Class : IE1 (IEC60034-30)
Voltage : 380V
Frequency : 50Hz
Enclosure : IP55 (Motor), IP23 (Brake)
Insulation : Class F
Temperature Rise : Class B
Duty Rating : S1 ~ S6
Instalation Method : IMB3/B5/B35/V1
Ambient Temperature : -15 ~ 40C
Humidity : <90%
Altitude : <1000m
Cooling Method : IC411
